360 degree view

Data / Facts

D / Diameter: 3-10mm

L1 / Total length: 150-430mm

L2 / Working length: 100-295mm

More Information


Metal Drill Bits

HSS DIN 1869 ground, extra long

  • Profile-ground
  • Right-hand cutting, type N
  • High-performance high-speed steel
  • Extra long, cylindrical
  • 118° conical section
  • Diametral tolerance h8
  • Point thinning from 3,2 mm Ø
  • In all rotary and percussion drilling machines
  • In machines for mechanical processing
  • For drilling extremely deep holes
  • Cutting speed and feed rate must not be too high for drill bit stability
  • Please ensure swarf is removed frequently and cooling is sufficient

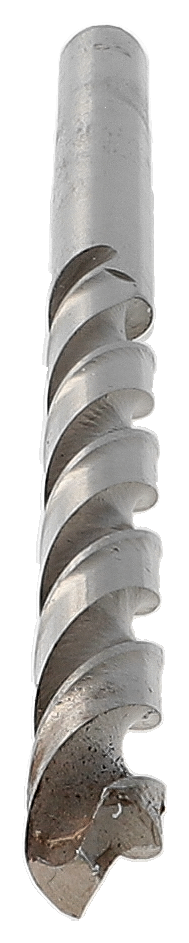

HSS twist drill bit



HSS twist drill bit

Due to its robust thickness of core and a distinctive hardness this drill bit has a long tool life. Especially when drilling with diameters below 6 mm the anti-torsion capability is very high while the danger of fracture is low. It is very suitable for working with alloyed and unalloyed steel, non ferrous metals, cast iron and hard plastics.

For use in / Application

Steel / various metal

Drive / Execution / Features
