Data / Facts
D / Diameter: 1-13mm
L1 / Total length: 34-151mm
L2 / Working length: 12-101mm
More Information
CatalogueMetal Drill Bits

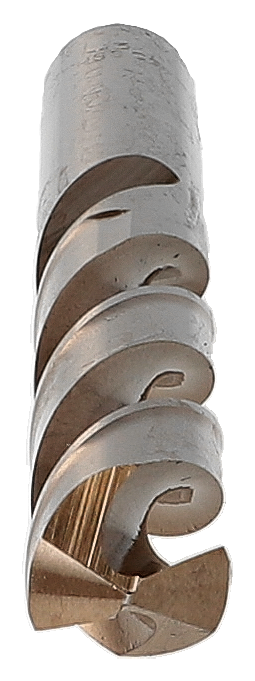

HSS-E DIN 338 cobalt, ground, split point
- Profile-ground
- Right-hand cutting, type N
- 5 % cobalt
- Short, cylindrical
- 135° conical section
- Cross-ground finish to DIN 1412 C (from Ø 3,0 mm)
- Diametral tolerance h8
- Materials with a high strength above 800 N/mm² which are difficult to cut
- Special alloys
- Solder resistant steel
- Stainless steel V2A -V4A
- In all rotary and percussion drilling machines
- In machines for mechanical processing
- Only for rotary use

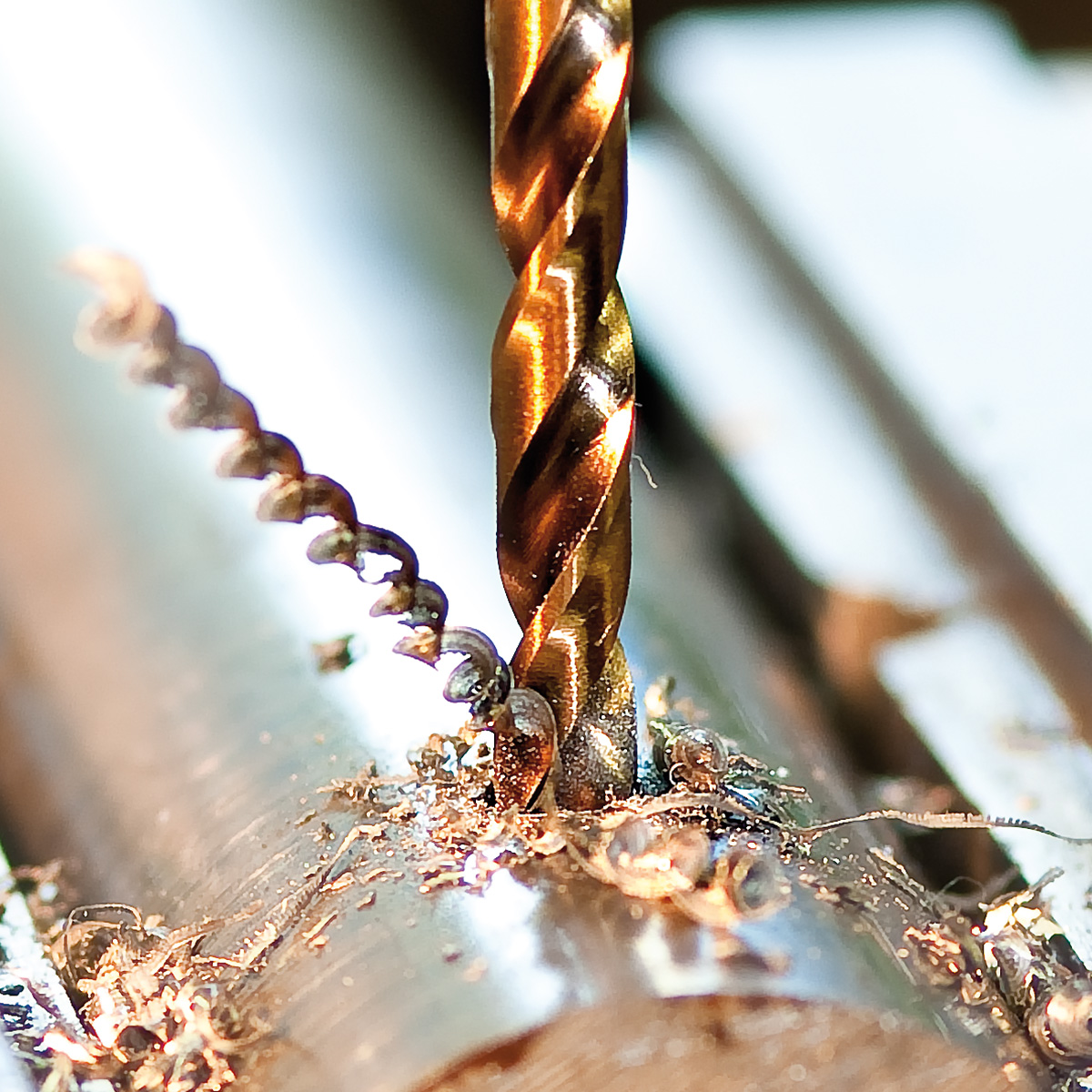

HSS-E twist drill bit
The HSS-E drill bit is a cobalt alloyed high performance drill bit. Even with insufficient cooling it has reserve in heat resistance. Due to the alloying addition of 5 % Co in the cutting material these drill bits can be used for working with work pieces with a tensile strength of over 800N/m².
Features
- Centre punching is not necessary
- Direct drilling without prior centering or drilling of a pilot hole
- Safe pilot hole drilling, even in slanting surfaces, in pipes and welds
- The feeding power is reduced by up to 50 %
- The drill bit facilitates an increase in drilling progress by up to 45 %
- Even chip removal and reduction of chip friction
- Extremely true running and precise round holes
- No jamming of the main cutting edge and no slipping of the drill bit with through boring holes
- High fracture strength and long tool life
- Reduced friction due to reduced diameter in the shank direction
- Higher breaking strength through conically reinforced drilling core
- Long operating time and fast drilling progress through chemical thermal method of hardening and accurate cross-ground finis
- Due to the alloying addition of 5% Co these drill bits are well-suited for workpieces with a tensile strength of more than 800 N/mm²
- Extra high temperature strength to cope with suboptimal supply of coolant
- Up to 20% higher durability than identically constructed HSS drill bits used under the same operating conditions
For use in / Application

Stainless Steel

Steel / various metal
Drive / Execution / Features

Zylinderschaft
