142088

Data / Facts

D / Diameter: 22-50mm

L1 / Total length: 320-1320mm

L2 / Working length: 200-1200mm

More Information

Catalogue

hammer drill bits

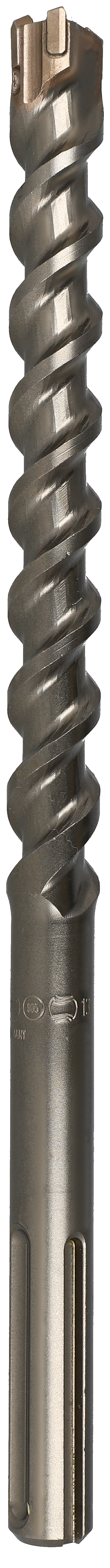

SDS-max W2 TURBOKEIL Xform

  • Made of chrome-nickel-molybdenum steel, shot-peened and intermediate level hardened
  • TURBOKEIL Xform 4-cutter with one main cutter and two side cutters
  • High-temperature brazing at about 1,120ºC
  • Fits directly into SDS-max and HILTI TE-Y drive



hammer drill bits TURBOKEIL Xform





hammer drill bits TURBOKEIL Xform

The symmetric Xform of the 4-cutter drills provides exact and accurate holes and protects the drill bit of damage when it hits armouring iron. Its head construction minimizes the friction in the drilling hole.

Vibration Protection

Low vibration load of the „hand-arm-system“ by means of significantly reduced vibration. Corresponds to the Directive 2002/44/EC of the European Community for vibration protection.

Features

  • W2 helix with asymmetrical, shovel-shaped entry grooves and large-volume double hauling flutes
  • 4-cutting edges with one main and two strengthened secondary cutters
  • Symmetric head shape
  • Robust and compact drill head
  • Additional drilling dust channel

For use in / Application

Artificial Stone

Masonry

Natural Stone

Reinforced Concrete

Drive / Execution / Features

PGM

Vibrationsarm

SDS-max
