142040

360 degree view

Data / Facts

D / Diameter: 4-14mm

L1 / Total length: 75-150mm

L2 / Working length: 40-90mm

More Information

Catalogue

Video

show video

special- and stone drill bits

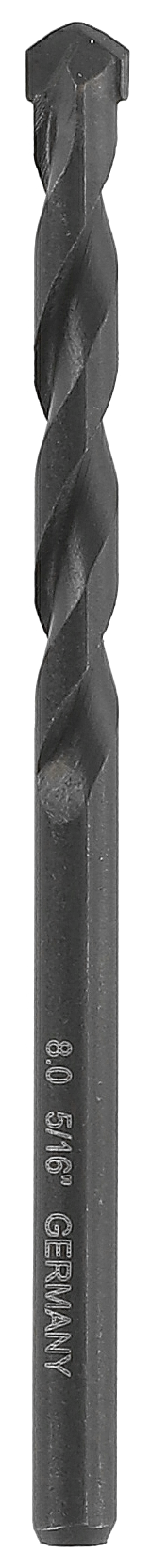

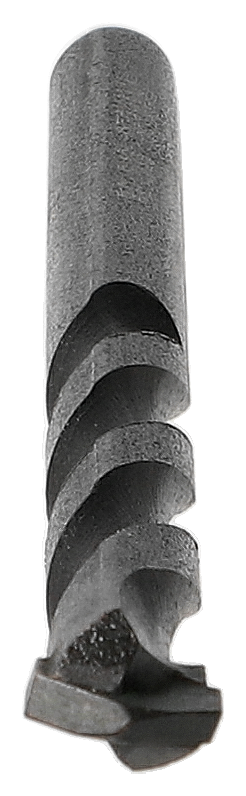

Tile / brick drill bit KERAMIK with TSM carbide tip

  • ISO 5468
  • Asymmetric spiral shape
  • Milled flute for optimum removal of drilling dust
  • Straight flute entry
  • Tungsten-titanium TSM carbide tip
  • High-temperature brazing at about 1,120ºC
  • Burnished surface
  • Up to 12 mm Ø with ROTASTOP shank
  • In all rotary and percussion drilling machines
  • High contact pressure
  • 20 seconds cooling time
  • Only for rotary use
  • In materials up to scratch hardness of 9
  • Drilling process and tool life can be increased by cooling with water



Tile / brick drill bits





Tile / brick drill bits

The high-performance drill bit allows dry drilling in hardest ceramics, stoneware, tiles and hard burnt bricks up to a scratch hardness of 9. The tungsten-titanium tip is a diamond ground special hard metal tip.



ROTASTOP





ROTASTOP

Optimal anti-twist protection, low frictional loss, high drilling performance. 99 % of the ROTASTOP shape guarantee an optimum transmission of torque. The result: no slipping in the chuck. ROTASTOP allows easy tool changing within seconds.

For use in / Application

Ceramics

Tiles / hard burnt brick

Drive / Execution / Features

ROTASTOP
